Principle

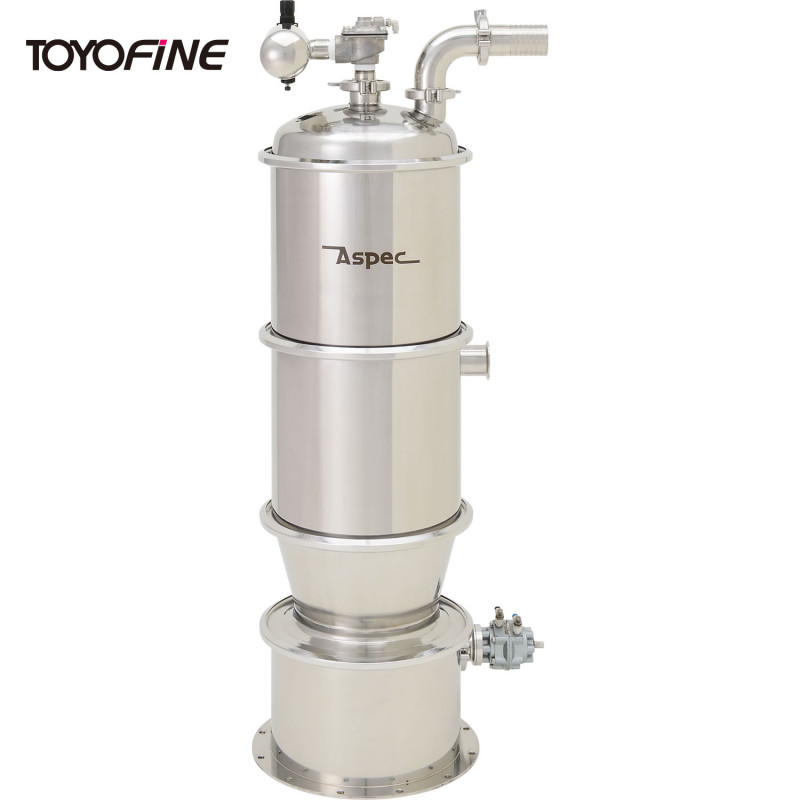

• A compact modular pneumatic conveying device with high suction force and easy disassembly and cleaning.

• Stable conveyance ensured by a multi-functional vacuum generator.

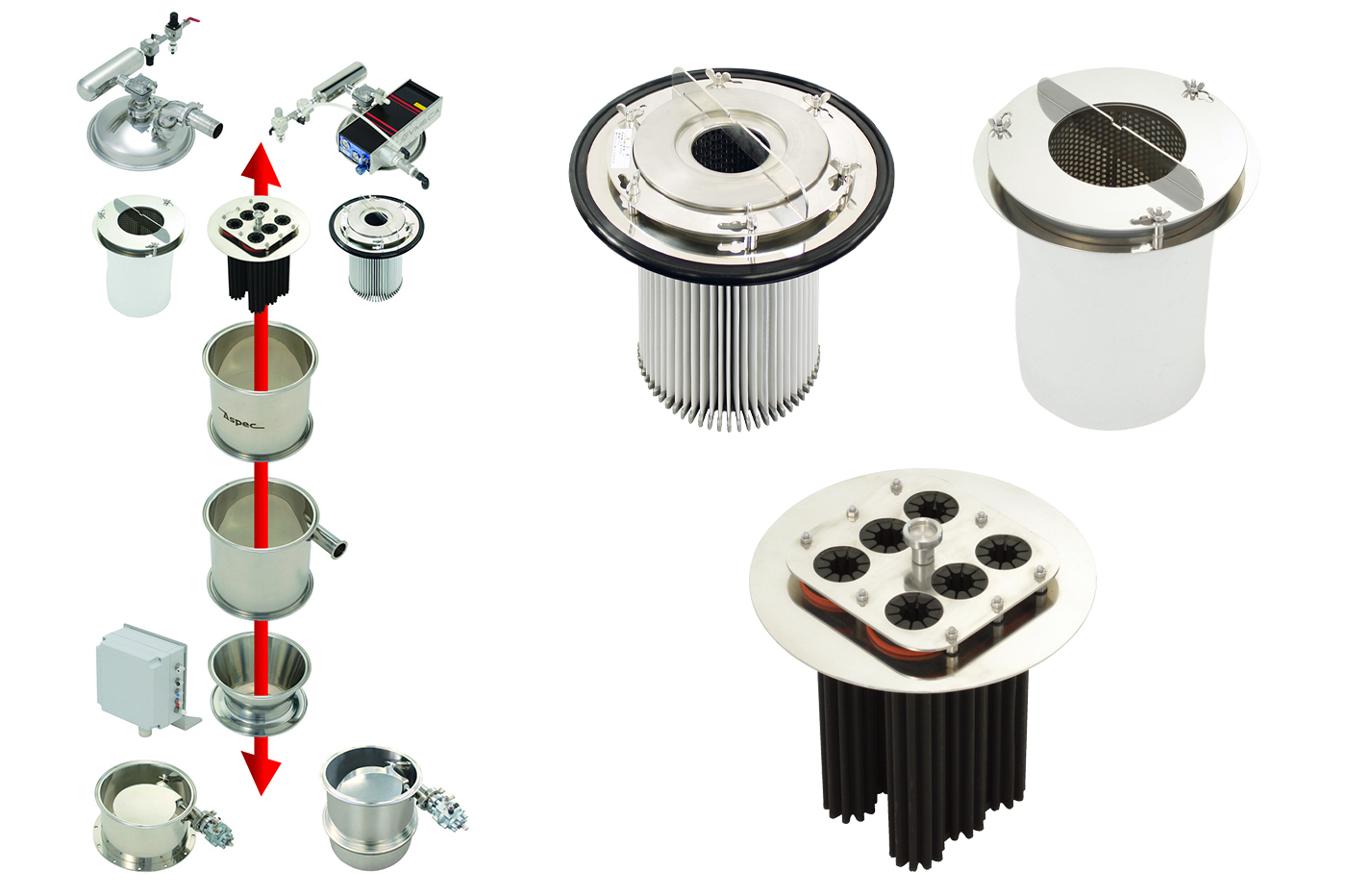

• A more compact structure thanks to the modularization of the body.

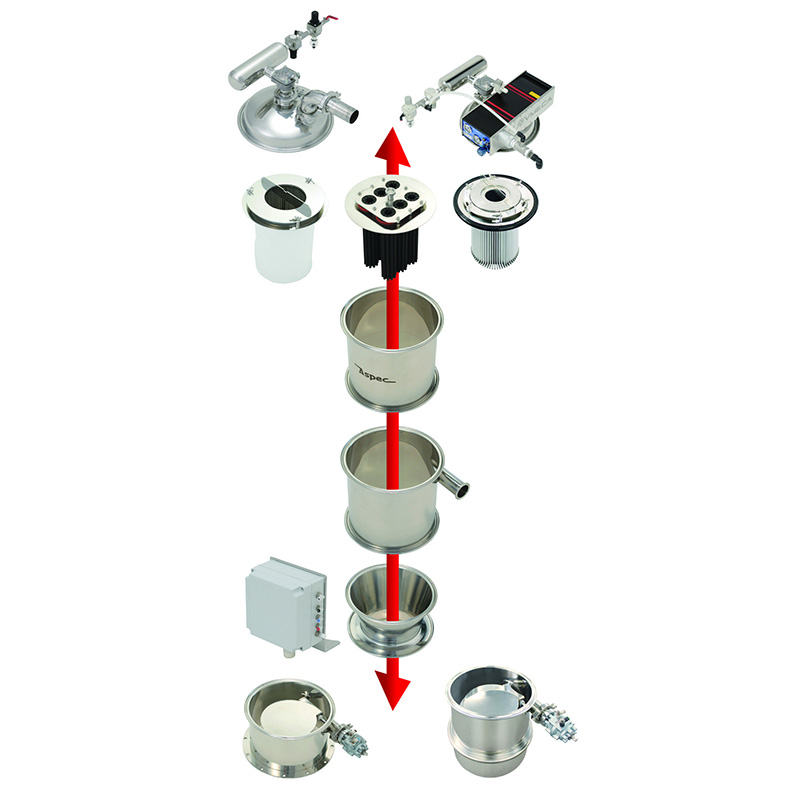

• Easy to disassemble and assemble due to a modular structure.
• Easy to clean and superior in sanitary performance.

Features

• Cleaning is also made very easy.
  The body of the vacuum Conveyer is small, lightweight, and modular, so it can be disassembled for cleaning, making cleaning very easy. Assembly after disassembly and cleaning is also very simple.
• Superior sanitary performance.
  There are no protrusions such as welding slag inside the body, so the sanitary performance is outstanding. Combined with excellent cleanability, the risk of foreign matter getting mixed in can be reduced.
• The large discharging port ensures smooth discharge of materials.
  The discharging port of the vacuum loader hopper is 160 in diameter, and the hopper angle is about 70 degrees, so bridging is not easy to occur. Almost all conveyed raw materials can be discharged smoothly without the need for auxiliary discharging devices.

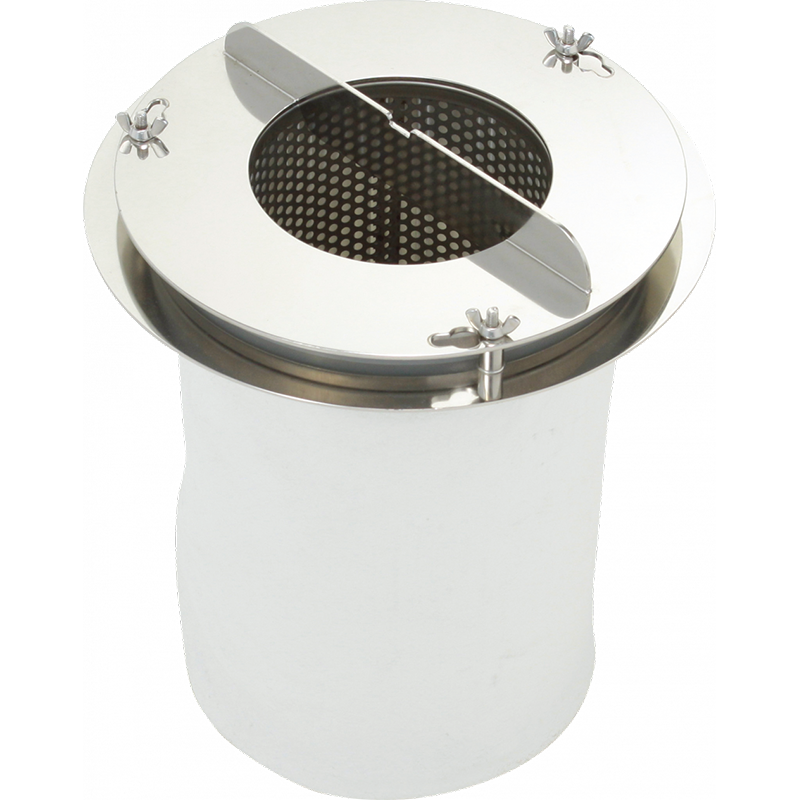

• The filter is twofold (W-shaped filter), so even the fine powder can be captured completely.
  The first filtering layer is felt cloth, and the second filtering layer is a specially processed woven fabric filter element. This double filter prevents the filter twice from clogging and can also prevent the mist from pulse jet cleaning from entering when the filter is being cleaned.
• Excellent suction components.
  Equipped with a multi-functional jet vacuum pump, it has the characteristics of simple structure, large air volume during conveyance, and high degree of vacuum achieved when clogged. This type of vacuum pump has no mechanical moving parts, so there are no easy-to-wear parts. For this reason, it can be used normally without maintenance.
