Principle

• Achieves simple and small air flow pneumatic conveyance!
• Stable conveyance realized through independent air control
• Automatic operation based on pressure monitoring
• Easy maintenance due to simple structure

• This equipment adopts an independent air control system to achieve simple and small air flow dense-phase pneumatic conveyance.
• Not only does it reduce initial investment, but it also successfully reduces operating costs.
• Because the air flow is small, the low-speed dense-phase pneumatic conveyance reduces the damage to the raw materials, and at the same time reduces the wear of the piping and equipment caused by the raw materials.
• Simple construction makes maintenance easier, and automatic pressure monitoring enables clogging-free and stable pneumatic conveyance.

Features

• Less air is used, and operating and incidental costs are lower.
• Low-speed pneumatic conveyance reduces the damage to raw materials and greatly reduces the wear of the piping and equipment caused by the raw materials.
• It is easy to maintain and clean due to a simple structure.
• Both batch conveyance and continuous conveyance can be realized.
• The conveyance efficiency of particles and granular materials is high.

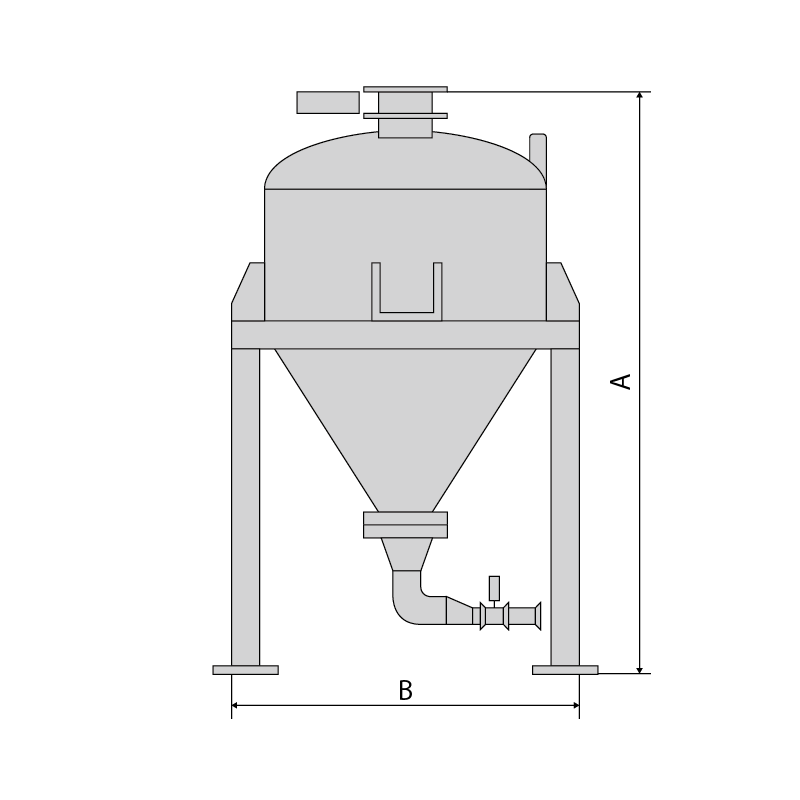

Model and parameters

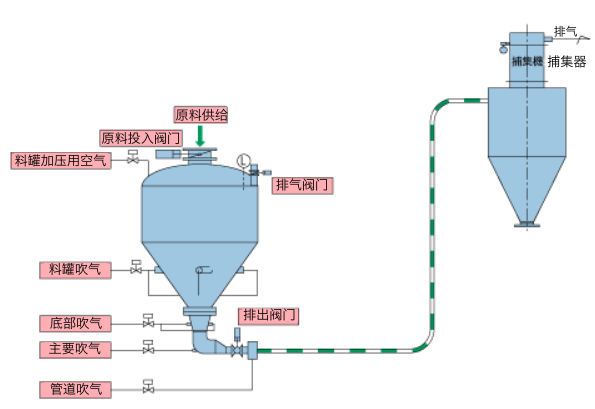

Flow chart
